Direction of Airflow in Paint Booths

Why Airflow Direction Matters in Paint Booths

The direction and distribution of airflow within a paint booth play a pivotal role in achieving optimal results. It involves the careful consideration of air movement patterns, ventilation systems, and filtration techniques. Getting it right means better finishes, less rework, and a safer work environment for your technicians.

Crossflow

One key airflow pattern commonly used in paint booths is crossflow. In this setup, fresh air enters the booth through filters located on one end while exhaust fans extract overspray-laden air from the opposite end. This creates a horizontal flow of air across the vehicle being painted, allowing for effective removal of contaminants and providing technicians with a clear view of their work.

Crossflow booths offer flexibility in terms of booth size and layout — multiple vehicles can be painted simultaneously without interfering with each other's airflow patterns, which is beneficial in high-volume settings. However, because airflow moves only horizontally, there can be inconsistencies in temperature distribution vertically, which may affect drying times in certain areas. Some crossflow booths address this by incorporating downdraft or side-draft capabilities for improved temperature uniformity during drying.

Downdraft

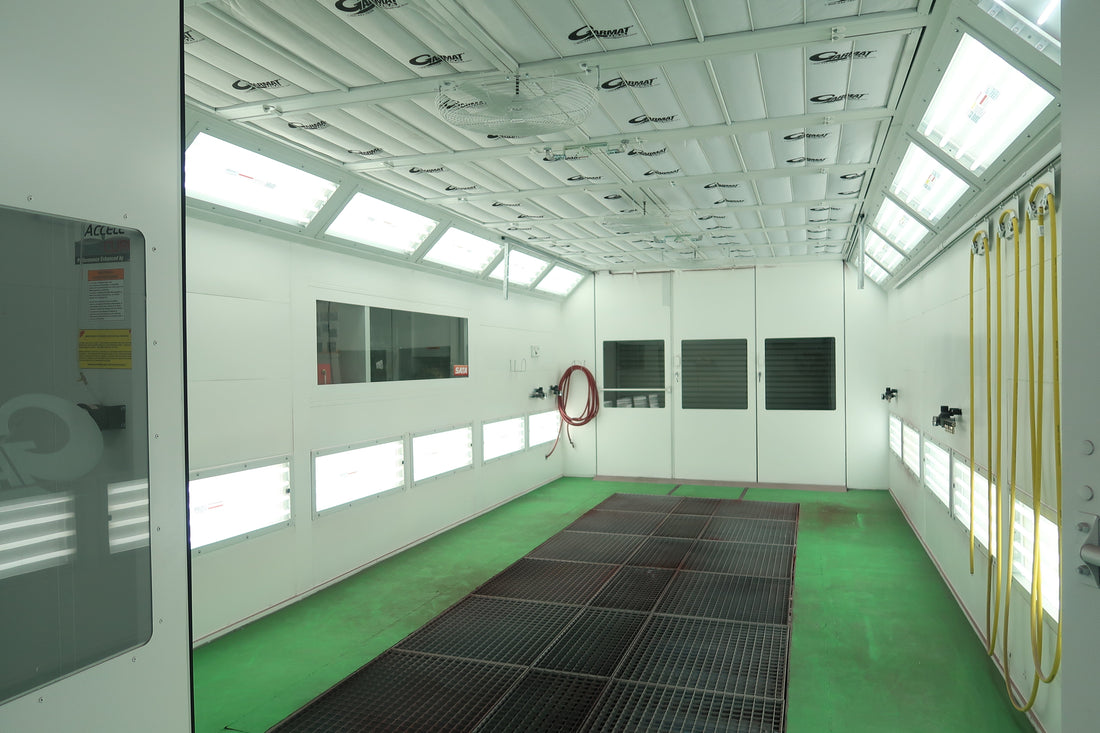

In downdraft paint booths, filtered air is introduced from above and flows vertically downward toward the floor, where it is then extracted through floor-level exhaust systems. This downward direction of airflow effectively captures overspray particles before they can settle on freshly painted surfaces, resulting in a smoother finish with reduced need for rework or refinishing.

Additional benefits of downdraft ventilation include:

•             Better visibility: Overspray and fumes are directed away from the painter's line of sight, allowing for more precise, consistent application.

•             Improved worker safety: Contaminants are drawn down and away from workers' breathing zones, reducing health risks from toxic substances.

•             Faster drying times: The downward flow carries away excess humidity more effectively than crossflow or side-draft systems, speeding up production.

To optimize performance, ceiling filters should be regularly maintained or replaced, and the floor should incorporate grates or pits for efficient airflow and easy overspray collection.

Side-Draft

Side-draft airflow systems introduce fresh air into the paint booth from one side — typically near the ceiling or wall — and direct it across the length or width of the booth toward an exhaust system on the opposite side. This creates a consistent, uniform flow across the work area while efficiently removing overspray and contaminants.

Side-draft booths are often favored for their:

•             Easier installation: Compared to downdraft booths, which require extensive floor modifications, side-draft configurations can be more straightforward to set up.

•             Excellent visibility: Since the incoming air flows parallel to the surface being painted, there's minimal interference with the painter's line of sight.

•             Accessible maintenance: Filters are typically positioned at either end of the booth for quick, easy replacement.

One consideration: side-draft booths may not be ideal for very tall vehicles like trucks or buses, where ensuring full coverage across the height of the vehicle could be a challenge.

Choosing the Right Airflow for Your Shop

Understanding the different types of airflow patterns — crossflow, downdraft, and side-draft — and selecting the most appropriate one for your specific needs is essential for consistent quality finishes, maximum productivity, and reduced rework. Advances in technology have also led to increasingly sophisticated control systems that optimize airflow direction based on specific job requirements, improving efficiency while minimizing energy consumption.
